13" Core i7 Samsung Series 9 Ultrabook

Back in my first year of uni, I bought one of the early Core Duo (not Core 2 Duo) 15" Asus laptops which at the time was great and it had a decent graphics card for games, etc.
Roughly 6 years later, its showing its age. The battery lasts less than an hour now, it weighs about 3kg not including the adapter and performance is lacking compared to todays technology.

After a recent shoulder injury and a busy week that involved me carrying my laptop from place to place, I decided it was time to reward myself with an early Christmas present and buy a new machine.

My requirements were:

• 13" screen
• As thin and as light as possible to aid portability
• Powerful enough to do almost anything my daily activities could involve
• <~ $2000

I compared as many of these 13" "ultrabooks" as I could and before long I had created a shortlist of my top 3 - which included an Asus u-Series, a Macbook Air and a Samsung Series 9.


Asus u-Series

The Asus machines, as usual, had a very good bang-for-buck, a nice thickness of 19mm and unlike most others, some models had full size video output and ethernet plugs.
While the price and size were right, the highest spec'ed machines were not quite as impressive as its competition. If budget was the number one concern, the Asus u-Series and Zenbook range offer pretty good value.


Macbook Air

I have never been a "Mac person" due to the traditional heavy pricing and proprietary nature of alot of their products, but these days (after some convincing) I believe the hardware and even price does have a surprisingly strong position in the competition.
The 13" Macbook Pro and Macbook Air both had very good specs to offer for around the $2000 price tag, both with Core i7's, 4-8GB RAM and SSD's, not to mention pretty attractive packaging.
After seeing a Macbook Air up close, I really liked how the thickest point is about 17mm or so at the back but it tapers off to next to nothing at the front.

So the model I chose for comparison purposes was worth $1928.99 and had the following specs:

• 1.8GHz Dual-Core Intel Core i7
• 4GB 1333MHz DDR3 SDRAM
• 256GB flash storage
• Mini DisplayPort to DVI adapter ($30)

I don't like the very proprietary DisplayPort and its $30 adapters, but its not too bad as almost everyone at my office uses a Mac so finding a spare adapter when needed wouldn't be too hard (I guess popularity offsets proprietary-ness).

The operating system did not bother me too much either as I intended to be running Linux as my primary OS anyway, but having a Mac would give me more familiarity with OSX which would be helpful considering its popularity in my line of work.

The minor annoyances would be: expensive adapters for video and ethernet ports, unfamiliar keyboard layout (command key where alt should be, etc), non-upgradeable ram, glossy screen, etc. - but those are pretty minor.


Samsung Series 9

I found these ultrabooks to have a very unique look and one of the first well thought out, thin designs that are not just another Mac look-a-like.
The sales pitch always includes a spiel about its "Duralumin"- which is a light and strong material used in aircrafts and while it looks stunning and adds sophistication and uniqueness to the overall design on the unit, this material along with the black plastic are both fingerprint magnets!

The specs of the Series 9 unit I used for comparison (and ultimately bought) was quite good:

• 1.5GHz Core i7
• 8GB RAM
• 256GB SSD
• Micro-HDMI to HDMI adapter ($15)

Initially I thought 1.5 GHz was kinda low, but after conversations with quite a few people and some research, this speed is its sort-of "resting" frequency and will automatically scale up to 2.6GHz when required.

The one big catch with this system is the RRP of ~$2700, while most Aussie shops sold them for ~$2500. This made me consider the Mac even more!

But during my research I saw MLN's price drop down to a much more attractive $1997 and immediately rang them to find out more details and how long the special would last. It turns out that Samsung are starting to phase them out of stores (presumably to make way for a new product next year) and naturally they had sold alot of units and only had a few left.

I did a bit more research and found that to save space, the ports are hidden behind very aircraft-like flaps, but as with the Mac, they are reduced size ports.
The video output is provided in the form of a micro-HDMI port - which is at least a more common format and I don't need to go through apple.com.
The other space-saving trade-off was a (sadly) proprietary ethernet port that comes bundled with an adapter to convert it to RJ45 - but unlike the Mac where you need to buy a USB network adapter, this actually has the network card built in, it just has an unusual plug - which I don't intend to use much anyway.

Another plus is this model comes with 1x USB 3.0 port (and a 2.0 port) which is great considering the speeds my brother gets with his USB 3.0 flash drive.

So I went to MLN and inspected the unit up close and what eventually made my decision for the Samsung was that for about the same price I get a machine with double the RAM (handy for VMs), a windows licence for portable gaming and a bunch of freebies from MLN including the HDMI to micro-HDMI cable, a set of Sennheiser headphones and a padded sleeve to carry it.

I was able to get the cable and sleeve free because I opted to purchase the extended 3 year pickup warranty for an additional $180ish and the headphones were a Christmas present :)

Initial impressions are very positive, the screen is incredibly bright and vibrant and with a smooth matte finish, I have had no issues using it outdoors.
The backlit keyboard is quite nice too, although the brightness of this light is controlled via windows drivers, so in linux (at this stage) I cant control its brightness.
The touchpad is large and seems to employ the same technique as the Mac Magic Mouse where there is one click-able button (the lower part of the pad) and depending on where your finger is when you click determines a right or left mouse click and once again, this doesnt work in Linux out of the box, but the standard 2 finger tap works as per normal.
Using Ubuntu 11.10 the rest of the hardware works out of the box, so no need to fiddle with drivers for network, graphics, webcam, etc.

Overall I am very happy with my purchase and its a huge step up from my old 15.4" 3kg laptop!

Removing geotag data from JPGs

Just a quick note, these days most cameras automatically geotag photos which is pretty cool, especially when taking travel photos, but sometimes you may not want everyone to know where a photo was actually taken.
For example, a photo of your backyard could give away your home address which is probably not a great thing.

Its really easy to clear the geotag data with a great little tool called exiftool.
I used this tool in an earlier blog post too and I find it really useful!

To install exiftool in Ubuntu:

$> sudo apt-get install libimage-exiftool-perl

Then executing exiftool followed by a jpg filename will output a whole bunch of exif data for you - some of which may have geolocation data:

$> exiftool image.jpg
ExifTool Version Number         : 8.60
File Name                       : image.jpg
Directory                       : .
File Size                       : 14 kB
...

The clear this geotag data out, simply issue this command:

$> exiftool -gps:all= image.jpg

Motion detection

The way my desk is positioned means that when I'm on my computer I face the corner of the room, which means the door is behind me.
Quite often I'll stay up late working away till early hours of the morning and usually music comes hand-in-hand with coding (for me anyway), so when it's late, I use headphones so I don't disturb anyone else.

This has caused me some grief as sometimes someone will come into my room for whatever reason and find me with my back to the them and headphones in, so knocking at the door or saying my name does not get my attention.
This leaves the last resort of tapping me on the shoulder which scares the crap out of me!

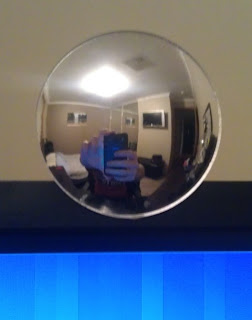

A while ago I invested in a convex mirror designed to go on your computer screen so you can see who's coming up from behind.
Well, with a 24-inch screen and deep concentration, this small mirror doesn't catch me eye at all, so I still hit the ceiling when someone taps me on the shoulder.

For my birthday I got this amazing Astro A40 headset. Sound clarity is absolutely stunning, they are really comfortable to wear and they block out a lot of surrounding background noise.
While I absolutely love the headset and wear it all the time, you can probably guess this adds to my jumpy-ness!

So I finally found a solution!

There is a package in the Ubuntu repositories called "motion" - which is a really simple motion detection server that utilises a webcam.
I had a look at "zoneminder" too, but it seems very over-kill for my needs.
motion will detect movement (above a configurable threshold), store "movement" snapshots and video files, log to a database and more importantly it provides a few hooks to fire commands upon events such as on_event_start, on_motion_detected, etc.

I disabled almost every option except the on_event_start hook.
This hook will execute the given command when motion has been detected after a (configurable) "gap" period of time of no motion - which I set to 10 seconds.

The command I set it to execute is this:

sudo -u steve notify-send --hint=int:transient:1 -i '/usr/share/icons/hicolor/scalable/mimetypes/text-x-apport.svg' 'LOOK BEHIND YOU!'

As mentioned in an earlier blog post, notify-send can be found in the libnotify-bin package

Note: the --hint=int:transient:1 is for Gnome-Shell which has introduced persistent notifcations and I didn't want to acknowledge a notification everytime someone walks past!

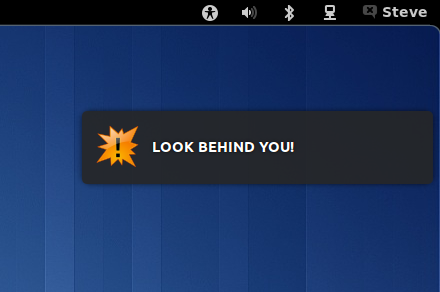

The end result of this little hack is when someone walks anywhere near my doorway, that command gets my attention with a standard Gnome-Shell notification from the bottom of the screen like this:

The reason I am using sudo here is that motion needs to be run as root, and so the notify-send command will also be run as root.
I guess because I had Unity installed before Gnome-Shell, when root runs notify-send, I get the Unity style notifications - which is still nice, but as I'm road testing Gnome-Shell, I figured I may as well use its notification look-n-feel too.

Here's what it looks like if you leave out the sudo -u steve part:
